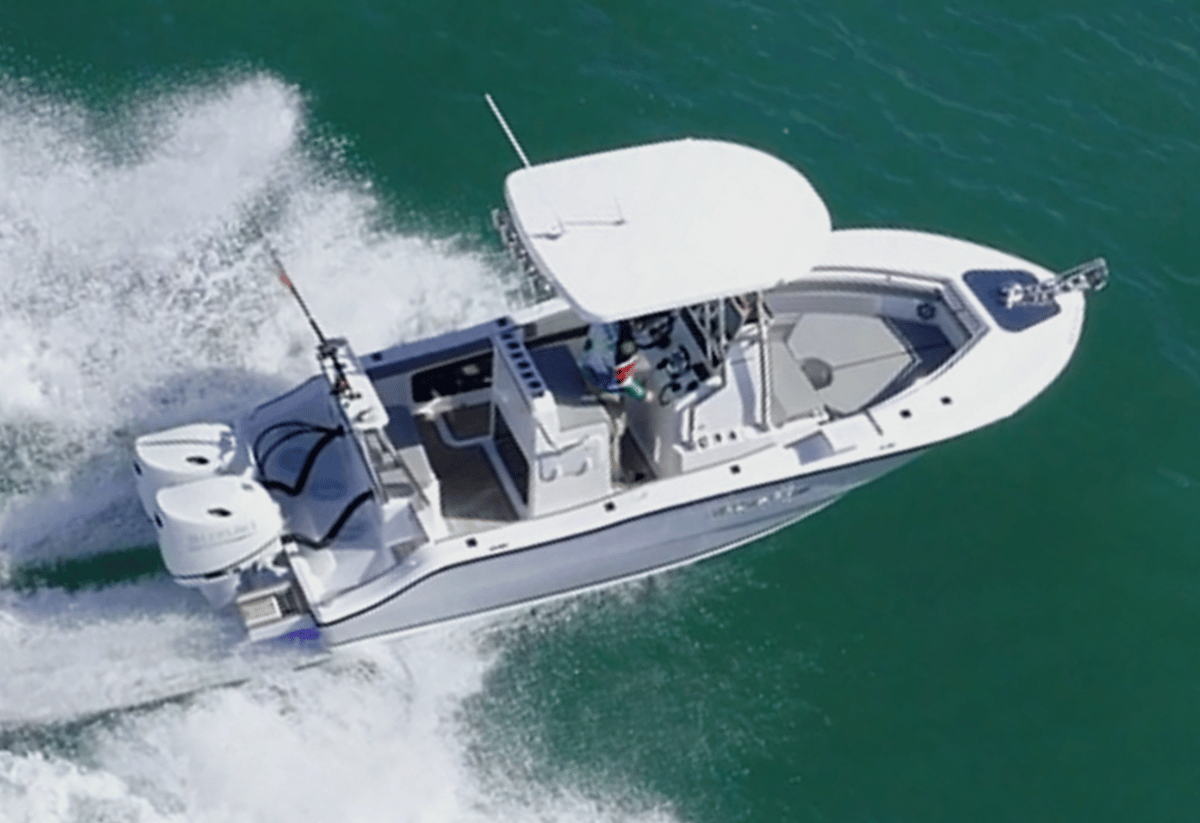

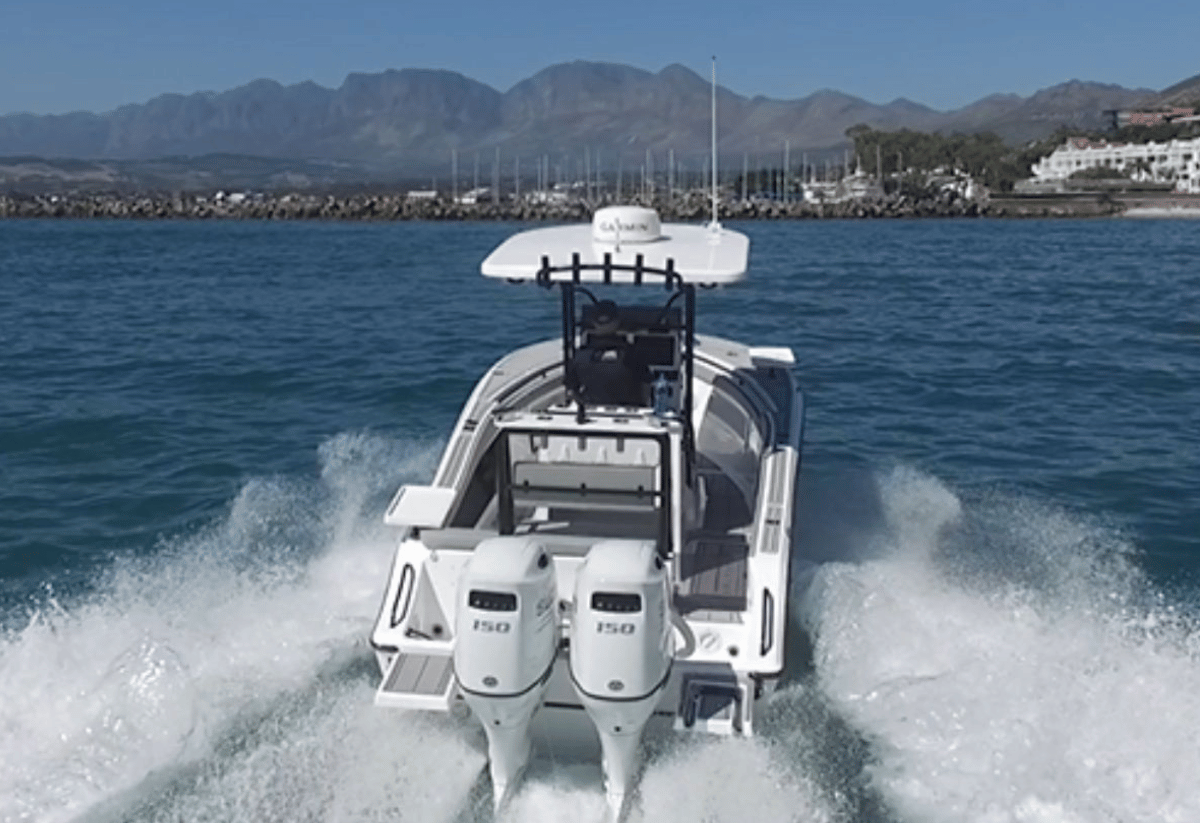

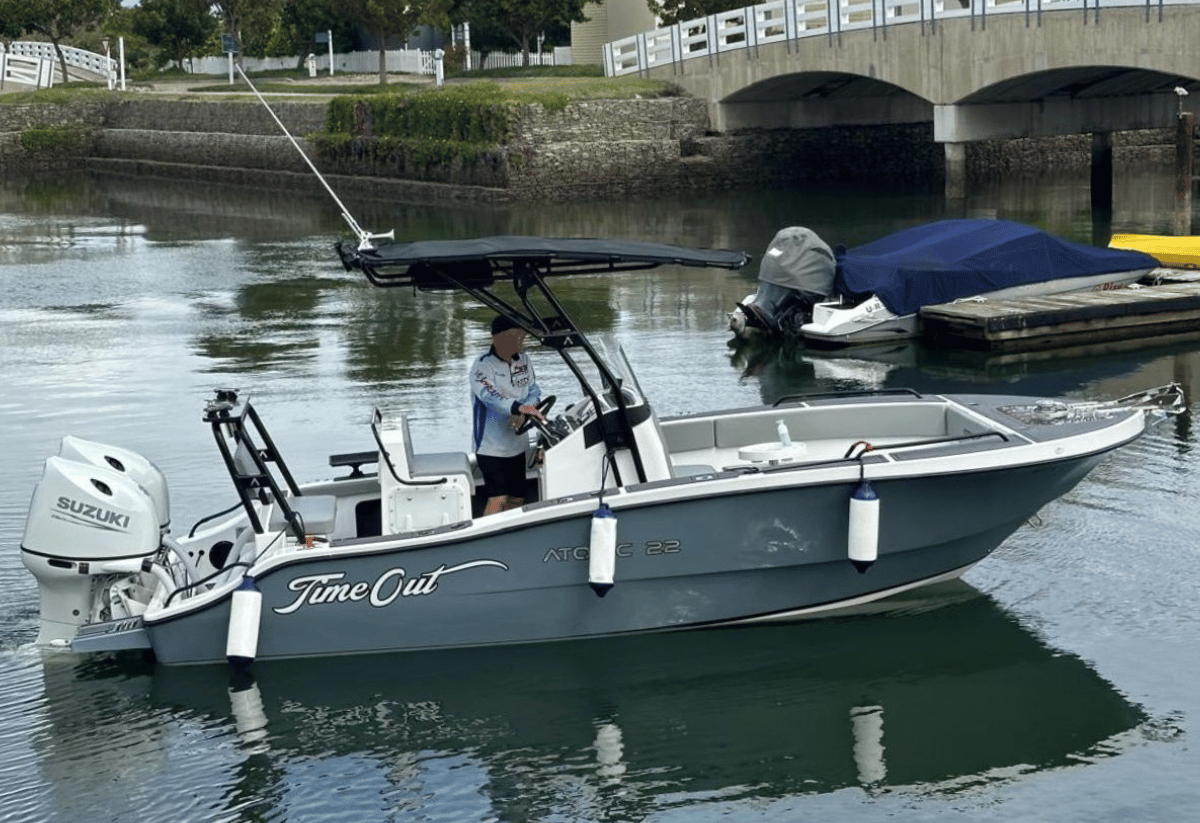

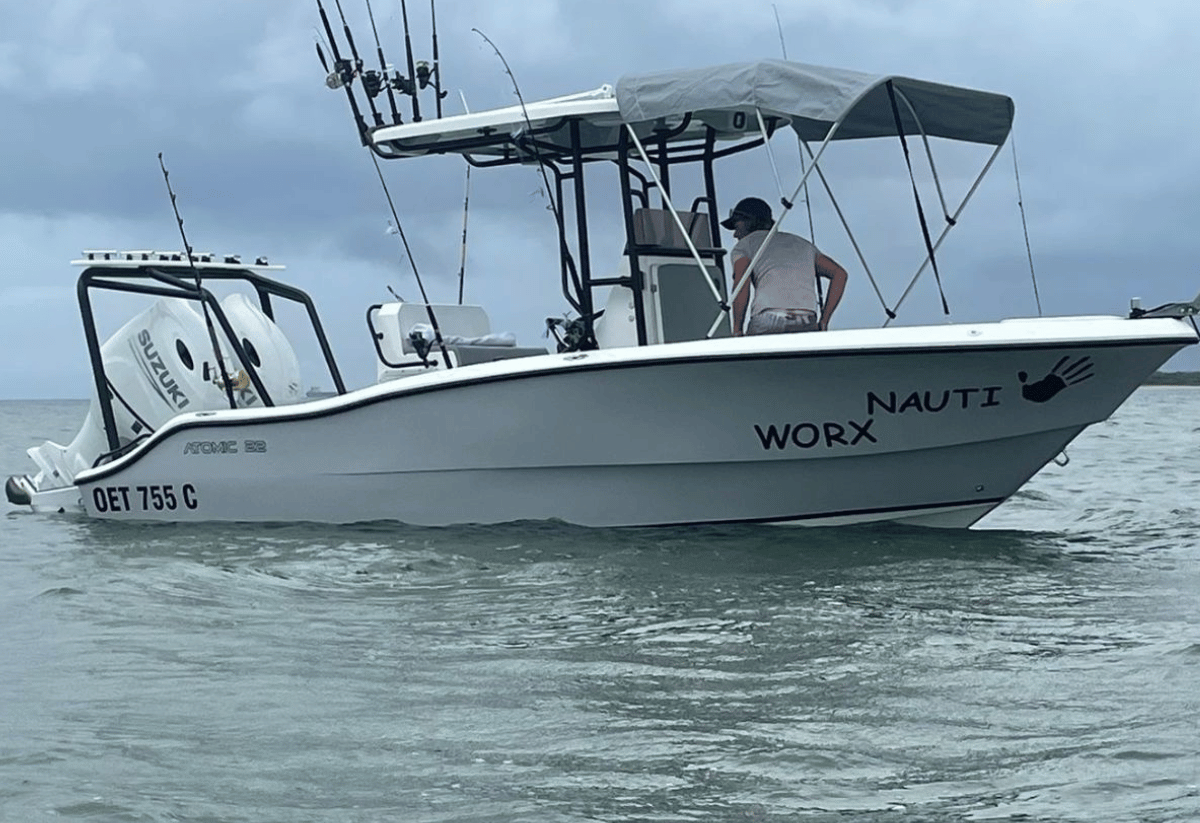

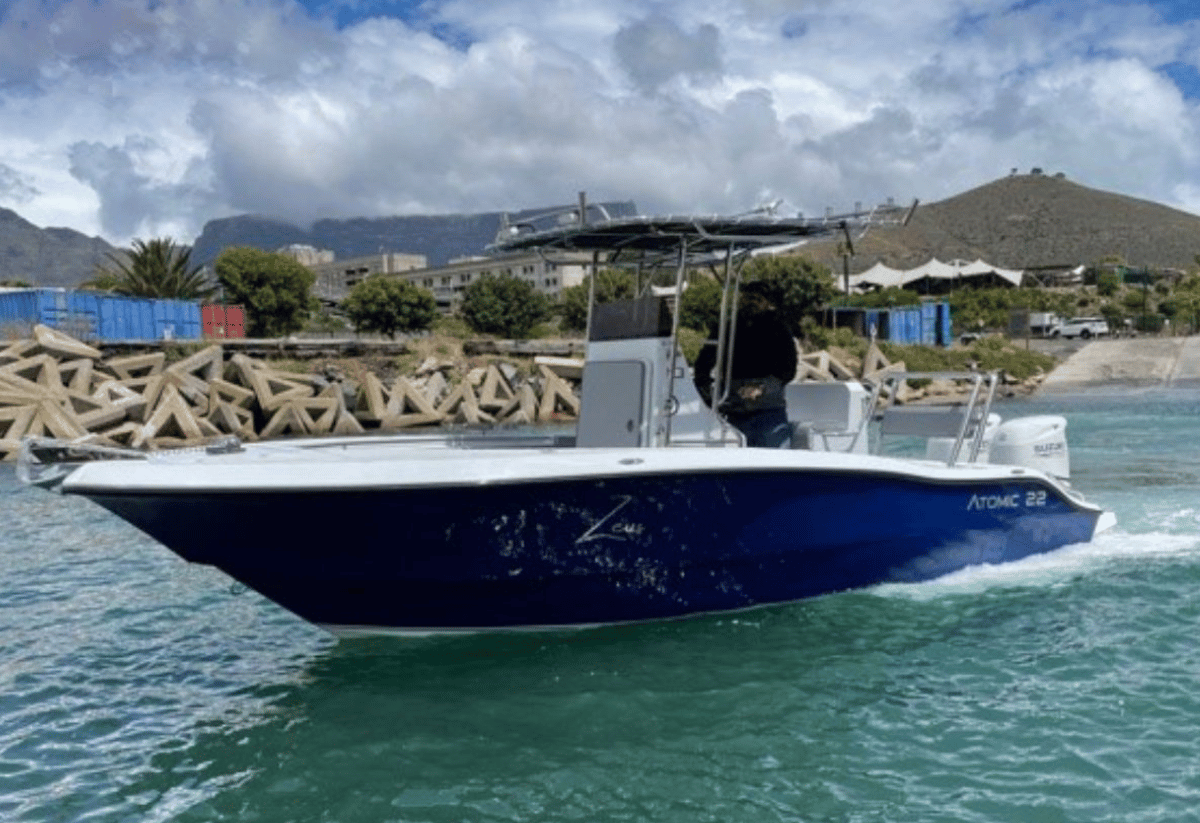

ATOMIC 22 Offshore

The ATOMIC 22 is a high-quality centre-console mono combining a sleek, modern design and a soft, comfortable and dry ride even in rough conditions. We’ve designed our ATOMIC 22 Offshore to be the ultimate performance fishing vessel for inshore and offshore fishing (up to 40nm). The boat is also an excellent all-rounder and handles wakeboarding, tubing and skiing with ease! this is literally one boat for everything!

Centre-console wet deck
Composite construction, closed cell polyurethane foam filled hull
Deck built from chopped strand matt sandwich SphereCore
Only Lloyds approved resins, woven matting and gel coats
SAMSA (South African Maritime Safety Authority) rating Category R – B (up to 40Nm) and for max 7 persons
Dual Coosa board bonded transom | Komacel (PVC) seat bases
LOA : 6.5m (21’3) BOA : 2650mm
Deadrise : 21.8 deg. Draft : 350mm
Transom width 2350mm | Freeboard: 1400mm (bow)
Freeboard : 1100mm (bow) | 870mm (mid-ship) | 470mm (transom)
Waterline to top of roof 2670mm
2 x Built-In 110lt aluminium tanks (ISO Certified) underdeck, removeable if required
1 x Large bow fish hatch and 2 x stern fish hatches
Oval 106lt live bait well, light blue gel coat inner, viewing window
Windshield & live well viewing window, structural polycarbonate
Wrap-around combing bolsters (cushioned knee rests gunwale inner perimeter)
Gunwale width 190mm false transom / rear seat
Gunwale width 200mm mid-ship | 750mm bow centre front
Gunwale to deck height 530mm at live well | 700mm at mid-ship
Gunwale to deck height 780mm at bow
Trailer Total Length : 7800mm (with outboard(s) to tip coupler)
Height: 3400mm (ground to top of rocket launchers on roof)
Height: 3600mm (ground to top of radar on roof)
Width : 2650mm (flared beam) widest part
Mudguard to mudguard (outer measure) 2430mm
Stainless keel strip 25mmx 5mm
Single outboard (30″ shaft) 200hp – 350hp
Twin outboards (25” shaft) 2 x 100Hp – 150Hp
Boat dry weight, fully installed (no motors) : approx. 1600kg
Trailer weight: approx. 800kg (load rating 3200kg with 2 x 1.6T hub-braked axles)
Total dry weight boat (fully installed, no outboards) on trailer approx. 2,300kg
Total dry weight boat (fully installed, with 2x 140Hp outboards) on trailer approx. 2,700kg
Limited 2 Year Structural Warranty on Hull

No bow seats OR 2 removable seats
Console seat (2 seater), 2 x 12″ displays can be fitted
Skippers seat, with storage below rear for large cooler box, tackle storage trays, cupholders and rod holders can be added
2 x Built-In 110lt aluminium tanks (ISO Certified) underdeck, removeable OR single 220L (larger tanks can be fitted)
Ski bar / trolling bar, cushioned backrest, double tube 50mm round bar
106L oval live bait well, viewing window, light blue gel coat inner
Removeable cushion on live well (offers two additional seats)
Boarding platform, 3-tier telescopic ladder (starboard)
Additional boarding platform (port)
Wrap-around combing bolsters (knee rests, gunwale inner perimeter)
3 x Fish hatches, large flush with deck, 1 x bow, 2 x stern (double as ice boxes as all encapsulated with foam)
Full steel package: 25x5mm keel strip, grab rails on gunwales, console seat grab rails, pop-up cleats on gunwales, anchor bollard, bow roller, anchor hatch bleeders, 2 x u-bolts (trailer tier downs)
Under gunwale rod racks, 4 rods per side, Flotex marine carpet finish
Dedicated battery storage compartment e.g. 3 x 120Ah batteries
Large splash / motor well for single and twin installations
Non-skid profile on deck
Wrap-around rub rail
Built-in insulated cooler box
SAMSA Small Vessel Build Certification Cat E – Cat B (40NM) = 7 pax and 9 pax (inland: rivers and dams)

Versatile centre console 22ft deep-V monohull
High gunwales, fast-back design, soft and dry ride
Single outboard: 200hp – 350hp
Twin outboards (25” shaft) 2 x 100Hp – 150Hp
Ample tackle storage plus 4 gunwale rod racks
Hard-top, T-top (Bimini) or folding roof options
Console, seating and deck layout designed for fishing
No bow seats OR 2 removable seats
3 large underdeck fish hatches
Live well & deck wash system
2 x 110L fuel tanks (ISO certified)
Rated for up to 7 persons and up to Cat B (40nm)
SAMSA Small Vessel Build Certification Cat E – Cat B (40NM) = 7 pax and 9 pax (inland: rivers and dams)

Standard Trailer:

Our trailers are built to handle the harshest conditions of Africa’s roads and beach launching.
Galvanized steel construction
2 x 1.6 ton axles (braked)
Standard or break-neck version (for beach launching) available
15′ commercial grade tyres, high ground clearance (spare included)
Heavy-duty coupler, winch and rollers (12mm stainless pins for rollers)
HDPE strips on upstands for easy launching and loading to trailer
Elevated V-bar at rear, ensures keel locates first roller
Long rear guide boards port and starboard: treated wood, covered in foam and marine carpeting

Optional Extras:

2.5m fold-away swing arm extension (keeps your tow vehicle out of the salt water when launching on slipways)
12000 lbs 12v winch for beach launching fitted to trailer, with or without dedicated battery
EVA foam fitted on mudguards (prevents slipping when boarding)

Colour Options

At HR Yachts, we offer a highly customisable craft in terms of colour options! We offer colour variations for the hull, console, skipper’s seat, gunwales, T-Top, Hard Top and various EVA decking choices to allow you to express yourself best. Here are some of our most popular hull colours.
